I-Locate — IL-37
Provides zone-level location in real time.
- Display Size
- 3.7” (Active: 81.5 × 47.0 mm)
- Display Type
- Active Dot Matrix | E-Paper (Quad Color, BWRY)
- LED
- 1, Addressable RGB
- Pages
- Max 4 images
3 Devices.
One Industrial
Intelligence Layer.
Purpose-built hardware for picking, locating, requesting and executing work across physical operations.
3
I-Series devices
2.4 GHz
Operating frequency
100 m
Transmission range
3–5 Years
Battery life on I-Locate & I-Request
Performance
Built For Work That Moves
I Series brings intelligent physical endpoints into industrial workflows.
I-Pick
Wireless Pick to Light serving e-commerce fulfillment, with 2.4 GHz sub-second response and two multicolor LED light bars visible from the front and back.
I-Locate

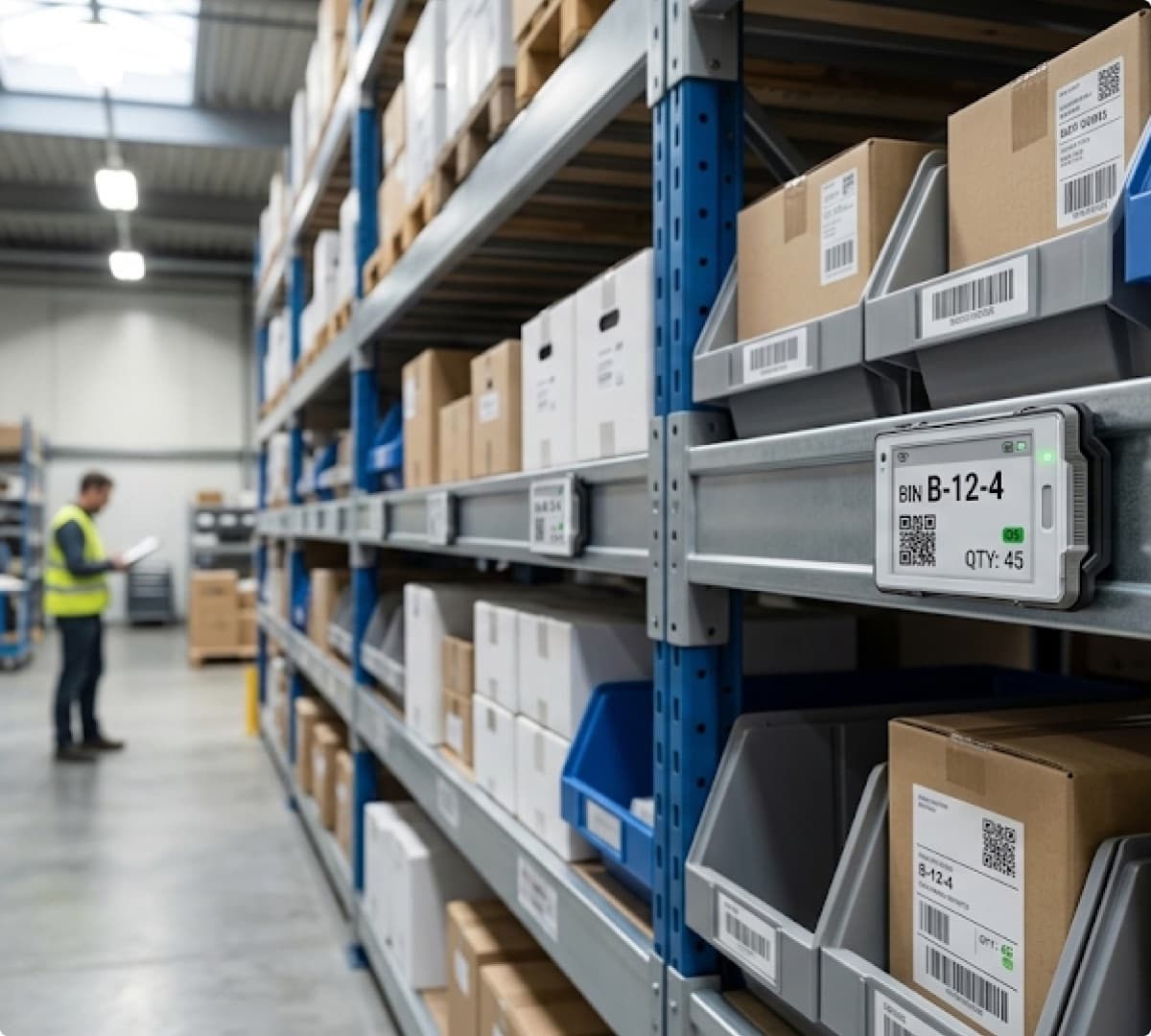

Locates machines, tools and packages in factories and warehouses while providing next-step instructions.
I-Request
A physical request button enables the right action to start instantly without waiting for someone to notice.
The Hardware Profile
Three Devices. Three Ways To Act.
Purpose-built endpoints that read an event at the physical edge, carry the next instruction to it, and let a worker start the right action on the spot.
I-Pick
Wireless Pick to Light: 2.4 GHz, sub-second response, and two multicolor LED light bars clearly visible from the front and back.
I-Locate
Real-time location guidance: locates machines, tools and packages across factories and warehouses, provides next-step instructions and triggers events.
I-Request
Physical request trigger: a large push configurable button designed for assembly-line use, with a 3.7” eInk display and multicolor LED.
Technical Infrastructure
Built For The Physical Edge
The industrial architecture combines edge devices with Ithina Maestro and Ithina Command. Shadow Mode observes every decision, approval and outcome, continuously improving Maestro’s reasoning over time.
- Perceive — reads every event from the physical edge.
- Reason — AI analyses context and recommends the best action.
- Approve — the operator confirms with a single tap.
- Execute and log — the action fires instantly, and every decision is recorded.
The I Series Family
Built For The Moment Work Happens.
I-Pick guides workers to a location, I-Locate gives zone-level position in real time, and I-Request turns a worker’s intent into a system action.
I-Request — IR-37
Enables worker intent to become a system action through a physical button.
- Display Size
- 3.7” (Active: 81.5 × 47.0 mm)
- Display Type
- Active Dot Matrix | E-Paper (Quad Color, BWRY)
- LED
- 1, Addressable RGB
- Pages
- Max 9 images
I-Pick — IP-18
Guides workers to location through wireless Pick to Light.
- Display Size
- Active Area: 27.8 × 20.0 mm
- Display Type
- Reflective, Segmented LCD (7 Segment)
- LED
- 1 (plus 2 multicolor LED light bars)
- Pages
- N/A
Technical Infrastructure
View Technical Specifications
- Operating Frequency
- 2.4 GHz
- Transmission Range
- 100 m
- Display Technology
- Active Dot Matrix E-Paper, Quad Color BWRY (IL-37, IR-37) · Reflective segmented LCD (IP-18)
- Active Display Area
- 81.5 × 47.0 mm (IL-37, IR-37) · 27.8 × 20.0 mm (IP-18)
- LED Indicator
- 1, Addressable RGB
- Max Number of Images
- 4 (IL-37) · 9 (IR-37) · segmented display (IP-18)
- Operating Temperature
- 0 to 40°C
- Battery
- 3 × CR2450 (IL-37, IR-37) · 3 × CR2477 (IP-18)
- Battery Lifetime
- 3–5 years (IL-37, IR-37) · 7+ years (IP-18)
- Firmware Management
- Wireless FW Upgrade: Yes
- System Integration
- Ithina CORE Software can be provided on-prem or in the cloud
- Compliance
- FCC / IC / CE
Technical specifications may vary by I Series model. Refer to the datasheet for detailed product specifications.
Agentic solutions
Explore AI Agents
Warehouse AI Agents
Explore AssistantPick Accuracy
Maestro validates each pick in real time, catches a wrong-location confirmation immediately and sends a re-check to the worker before the error leaves the floor.
FAQ
Frequently Asked Questions
The I Series hardware is designed for industrial workflows including picking, locating and request-driven operations across manufacturing, warehousing and related physical operations.
I-Pick provides wireless Pick to Light for e-commerce fulfillment, using a 2.4 GHz connection, sub-second response and two multicolor LED light bars.
I-Locate locates machines, tools and packages in factories and warehouses, provides next-step instructions and supports event triggering.
The I-Request uses a large push configurable button for the assembly line. The datasheet describes pressing the button so the right action starts instantly.
The industrial architecture positions I-Pick, I-Locate and I-Request as hardware tiers connected to the Ithina Active Intelligence Engine / Maestro architecture and Command layer.
