The Connectivity
Backbone of the
Maestro System.
The Ithina Gateway-Integrated is the connectivity backbone of the Maestro system, deployed across Warehouse, Manufacturing, and Last Mile operations. It bridges every anchor and tag on the floor, in a facility, or inside a delivery vehicle to the backend platform, relaying location and data in real time.
100 m
Wireless Communication Range
2 Mbps
Data Rate
100,000+
Connected Devices per Access Point
13 W
Maximum Power Consumption
Performance
Built to Connect. Built to Relay.
The Ithina Gateway-Integrated provides the connectivity backbone of the Maestro system, bridging anchors and tags to the backend platform and relaying location and data in real time.
Real-Time Data Relay
Connects anchors and tags to the backend platform for real-time data relay.
Connect at Scale
Supports multiple simultaneous anchor and tag connections.
Fast Wireless Updates
Enables fast wireless communication between connected devices.
Independent Connectivity
Provides its own dedicated wireless connectivity, so it doesn’t need to connect to a customer’s existing IT network.
The Hardware Profile
4 Most important features
The Ithina Gateway-Integrated bridges every anchor and tag on the floor, in a facility, or inside a delivery vehicle to the backend platform.
Between Anchors, Tags
Bridges every anchor and tag to the backend platform, relaying location and data in real time.
Dedicated Wireless Connectivity
The IGI-1 provides its own dedicated wireless connectivity, so it doesn’t need to connect to a customer’s existing IT network.
Multiple Simultaneous Connections
Supports multiple simultaneous anchor and tag connections.
Built for Connected Operations
Provides a 100 m wireless communication range.
Technical Infrastructure
Connectivity That Keeps Physical Operations Connected.
The Ithina Gateway-Integrated is the connectivity backbone of the Maestro system, deployed across Warehouse, Manufacturing, and Last Mile operations. It bridges every anchor and tag on the floor, in a facility, or inside a delivery vehicle to the backend platform, relaying location and data in real time.
- Real-Time Data Relay
- Relays location and data between anchors, tags and the backend platform in real time.
- Independent Connectivity
- Provides dedicated wireless connectivity without requiring connection to a customer’s existing IT network.
- Cloud or On-Premise Deployment
- Supports Cloud or On-Premise deployment.
- Enterprise-Grade Security
- Designed with Enterprise-Grade Security.
Technical Infrastructure
View Technical Specifications
- Dimensions (mm)
- 254 x 185.6 x 33.5
- Dimensions (inch)
- 10 x 7.2 x 1.319
- Part Number
- 89-00003-02

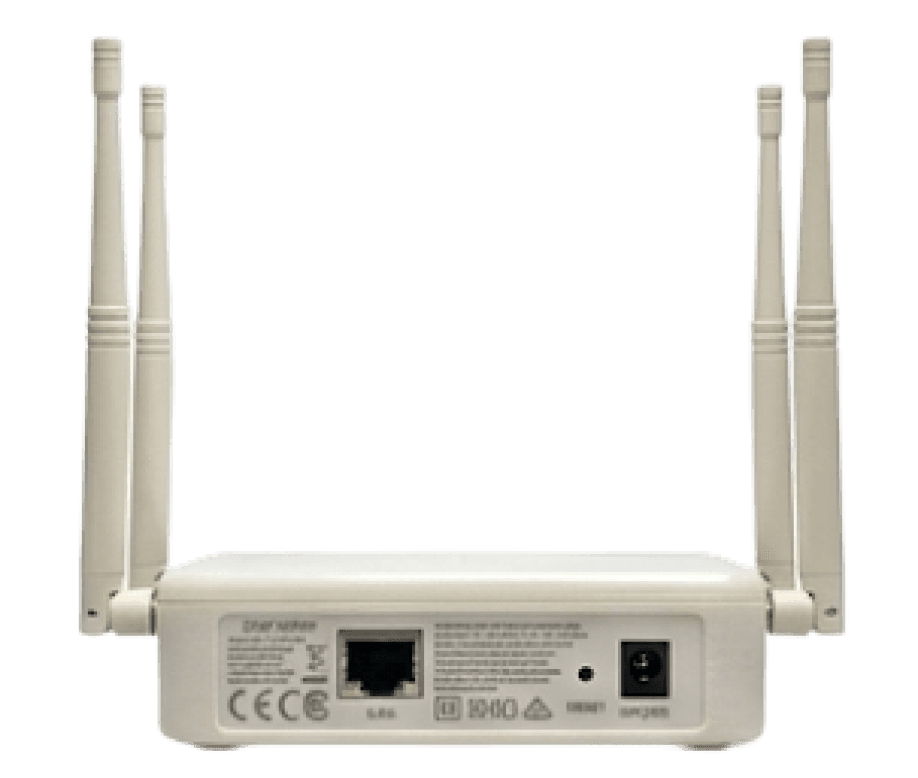

- Ports
- 10/100 Ethernet with IEEE 802.3af PoE Support; 12 VDC, 1.2 A barrel-jack Power Input; RJ45 Console Port (Development/Debug Use only), Wireless 2.4GHz
- Operating Temperature (°C [°F])
- 0 to 50 (Ambient Model) | -20 to 40 (ELT Model)
- Connected Device Capacity
- More than 100,000 devices per Access Point (AP)
- Antenna
- 4Antenna
- Antenna Gain
- 6dBi
- Power Supply
- IEEE 802.3 Ethernet Switch, 12 VDC, 1.2A Barrel-Jack Connector; Maximum Power Consumption: 13 W**
- Compliance
- Safety: EN 60950-1; Radio Certifications: EN 300.328, EN 55022, EN 62311; EMI (Class B): EN 301.489-1
- Power
- 13W Power over Ethernet / 12 VDC Barrel
- Weight (in gms)
- 893
Agentic solutions
Explore AI Agents
Retail AI Agents
Explore AssistantPerishable AI Agent
Predicts demand, reduces waste, and optimizes restocking of perishable inventory.
Retail AI Agents
Explore AssistantPlanogram AI Agent
Optimizes shelf layouts and ensures planogram compliance for better product visibility and sales.
Retail AI Agents
Explore AssistantPromotional Assistant
Uses shelf intelligence to identify planogram issues and support corrective action.
FAQ
Frequently Asked Questions
The Ithina Gateway-Integrated bridges every anchor and tag on the floor, in a facility, or inside a delivery vehicle to the backend platform, relaying location and data in real time.
No. The IGI-1 provides its own dedicated wireless connectivity.
The technical data specifies more than 100,000 devices per Access Point (AP).
The Gateway-Integrated is deployed across Warehouse, Manufacturing, and Last Mile operations. The datasheet also lists Cloud or On-Premise Deployment and applications across Warehouse, Manufacturing, Last Mile Deployments and Cold-Chain.
The Gateway provides a 100 m wireless communication range.
